24W Constant Current LED Flexible Strip 2835 24V
24w shenzhen high cri 95 90 flexible constant current high lumen output warm white 2700k 3000k 24v rohs smd 2835 led strip light
FEATURES
| Light Source | LED Quantity | Input Voltage |
| Edison 2835 SMD 0.2W 60mA | 156LEDs/m | DC 24V |
| Substrate | LED Pitch | Operating Temperature |
| Rolled-annealed copper 2Oz | 6.41mm | -20°C~+45°C |
| Color Temperature | Min Cuttable Length | Degree of Protection |
| 2700K 3000K 4000K 5700K | 38.46mm | IP20 |
| CRI | Width | Package |
| 95 80 | 8mm 10mm | 10m/reel |
| MacAdam Ellipse | Max Length | |
| 3-Step | 8m 11m |
TECHNICAL SPECIFICATIONS
| Article No. | LEDs | LEDs/m | Volt(DC) | Power(W) | Angle(°) | CCT(K) | CRI | Flux(lm) |
|---|---|---|---|---|---|---|---|---|
| Si242708E | Edison | 156 | 24V | 24 | 120 | 2700 | 80 | 2120 |
| Si243008E | Edison | 156 | 24V | 24 | 120 | 3000 | 80 | 2170 |
| Si244008E | Edison | 156 | 24V | 24 | 120 | 4000 | 80 | 2360 |
| Si245708E | Edison | 156 | 24V | 24 | 120 | 5700 | 80 | 2460 |
| Si242708K | Edison | 156 | 24V | 24 | 120 | 2700 | 95 | 1600 |
| Si243008K | Edison | 156 | 24V | 24 | 120 | 3000 | 95 | 1650 |
| Si244008K | Edison | 156 | 24V | 24 | 120 | 4000 | 90 | 1800 |
| Si245708K | Edison | 156 | 24V | 24 | 120 | 5700 | 90 | 1900 |
TECHNICAL DRAWINGS
RELATED
|
|
|
|

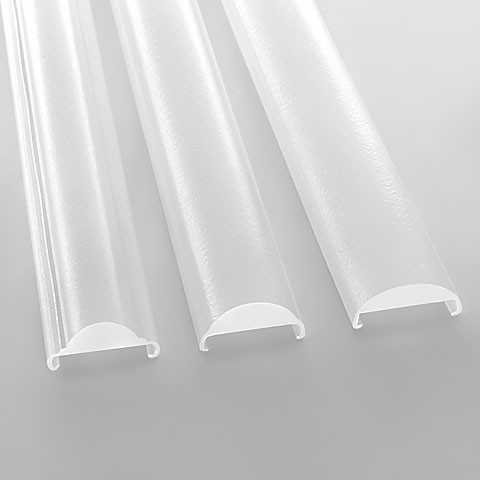

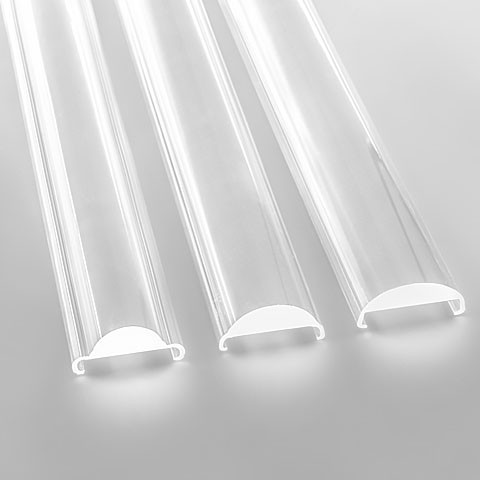

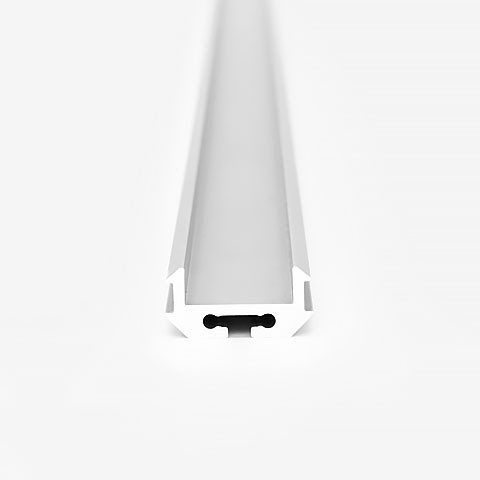

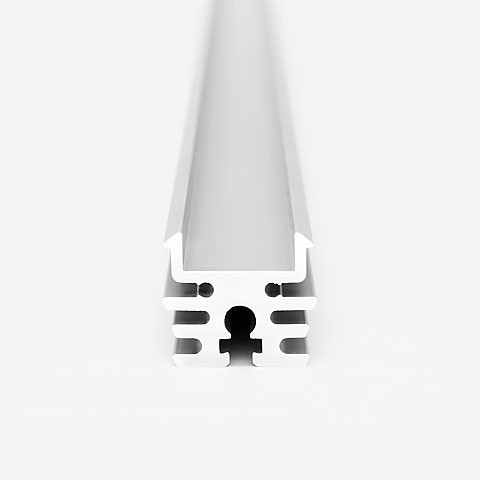

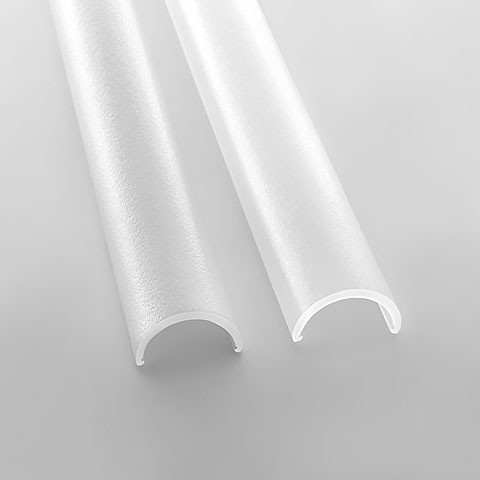

| P1701 LED Aluminum Profile | P1702 LED Aluminum Profile | Clear Lens for P1701 P1702 | Semi-clear Lens for P1701 P1702 |
|
|
|
|

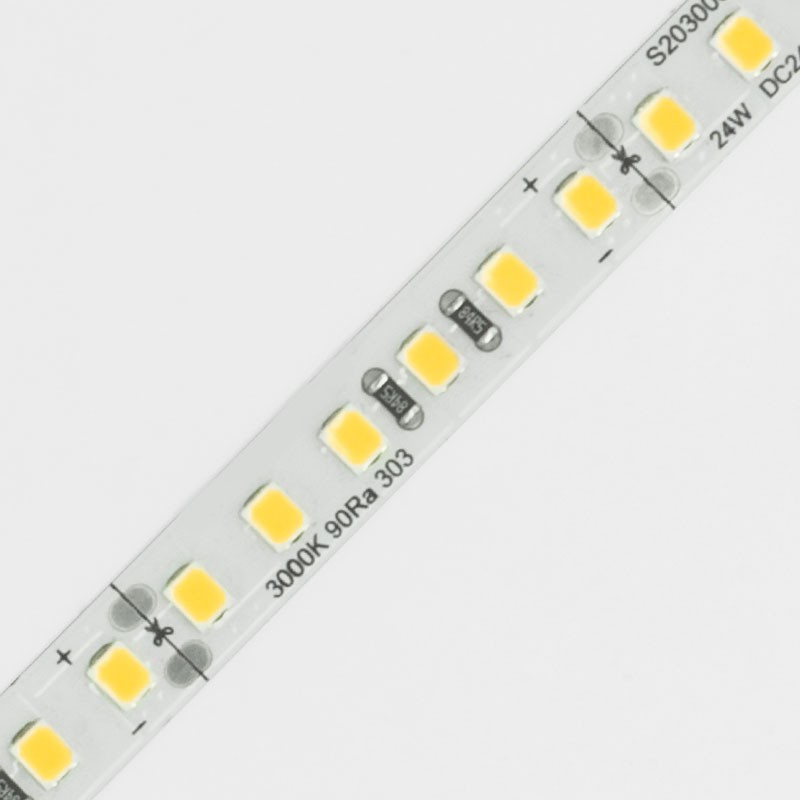

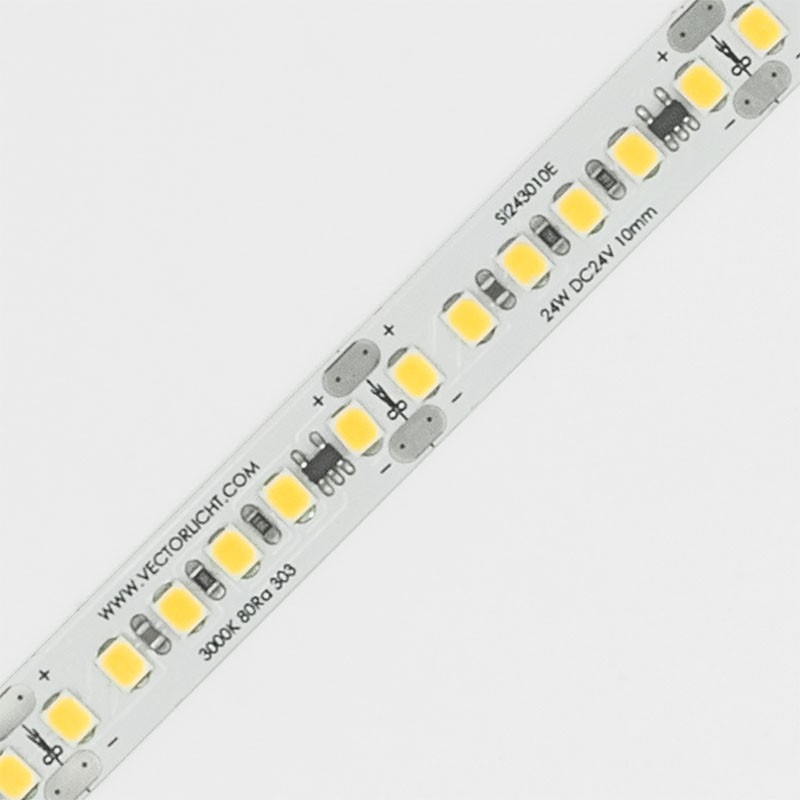

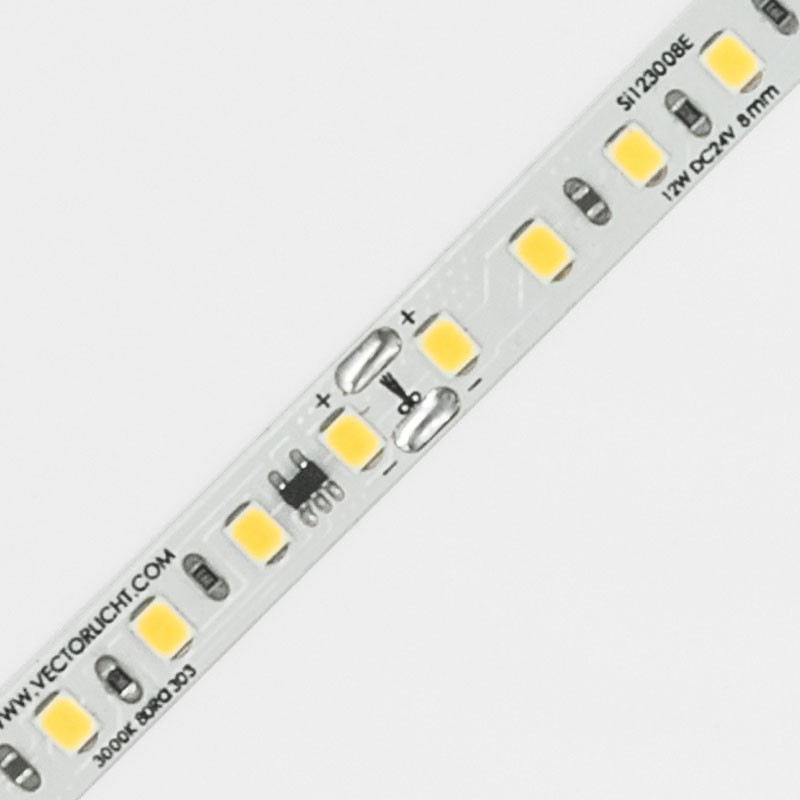

| Cover for P1701 P1702 | 24W LED Strip MaxLength 11m | 12W LED Strip MaxLength 12.5m | 24W LED Strip |
|
|
||

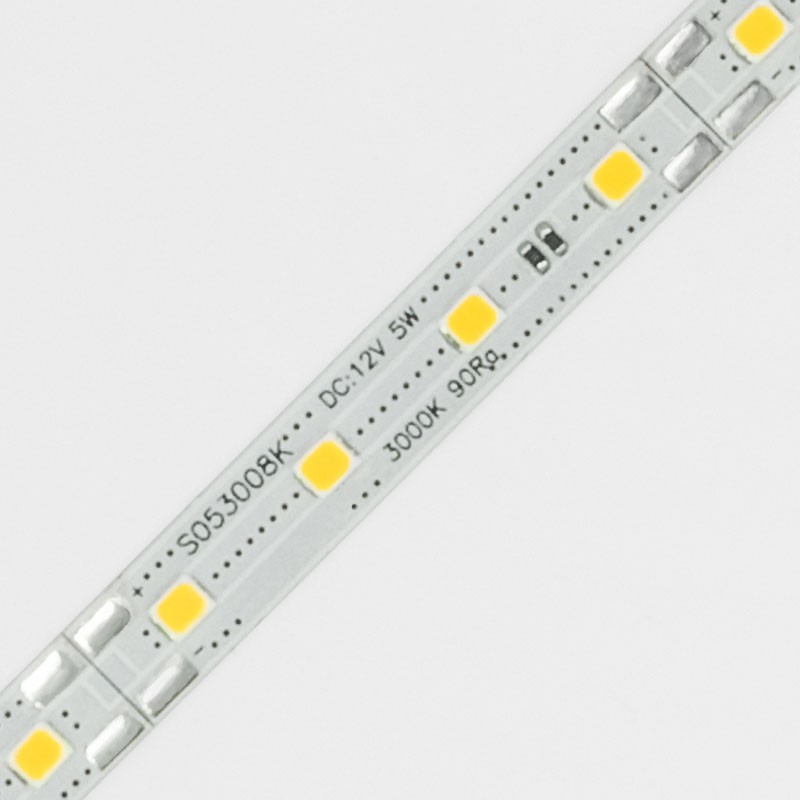

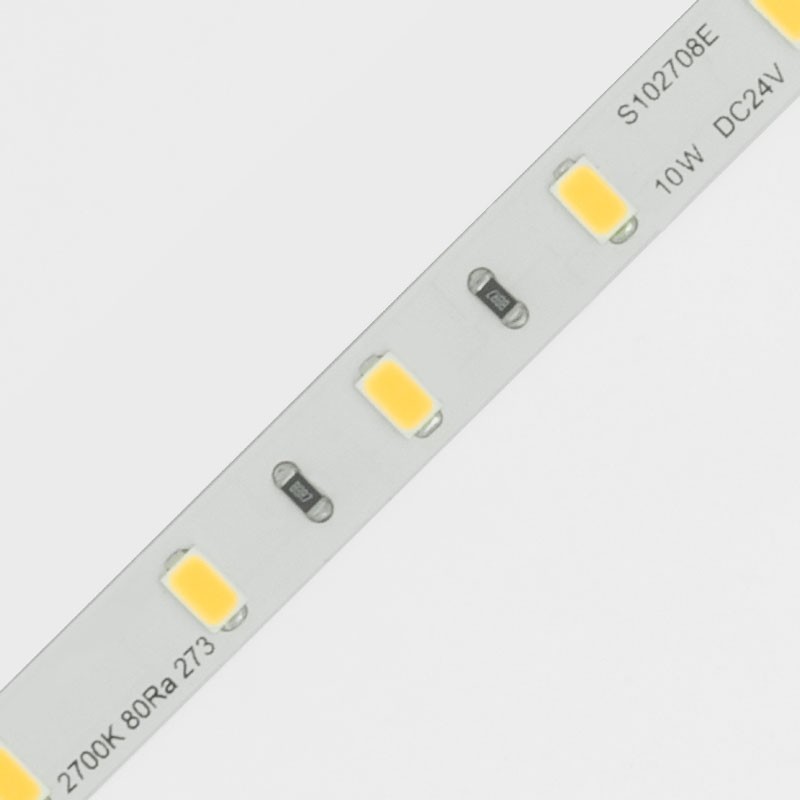

| 10W LED Strip | 5W LED Strip |
